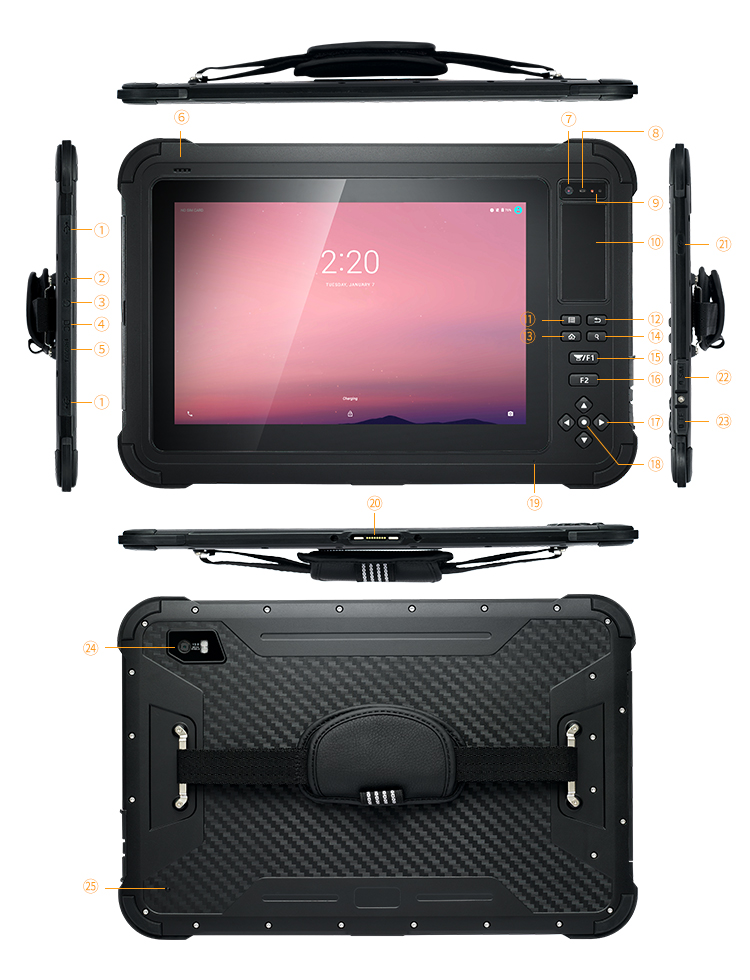

DESCRIPTION
1. Type-A (Sealed Cover) | 2. Type-C (Sealed Cover) | 3. Handset Jack (Sealed Cover) | 4. DC-type (Sealed Cover) |
5. RS232 (Sealed Cover) | 6. Speaker | 7. Sub Camera | 8. Ambient light sensor |
9. Status indicator and charging indicator | 10. Fingerprint(Optional ) | 11. Menu button | 12. Back button |
13. HOME button | 14. Search button | 15. defined button(Optional) | 16. Defined button |
17. Direction button | 18. Confirm button | 19. MIC | 20. 8pin pogo pin(magnetic) |
21. Power button | 22. SIM (Sealed Cover) | 23 . TF (Sealed Cover) | 24. Main camera |
25. Temperature pressure sensor(Optional) |
Packaging & delivery
- Selling Units:
- Single item
- Single package size:
- 36X36X25 cm
- Single gross weight:
- 9.500 kg
- Picture Example:
Specification
Hardware | ||||
CPU | ARM Cortex A73 octa-core(2.0GHz ) | |||
GPU | Arm Mali-G72 MP3 | |||
RAM | 4G | |||
Internal Memory | 32G | |||
External Memory | Micro SD card ( T-FLASH card), max 256GB | |||
Main Camera | 13.0MP(AF) with flash led | |||
Sub Camera | 5.0MP | |||
Battery | 14600mAh | |||
Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable | |||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
IO/Sensor/Navigation | ||||
SIM Card | 1.8/3.3V SIM card | |||
TF Card | Micro SD card ( T-FLASH card) ;max 256GB | |||
Headphone | 3.5mm (CTIA) | |||
Charging interface | Type-C & 8pin pogo pin(magnetic) & DC 5V(direct battery charging) | |||
Data interface | USB Type-A(Host)*2 Type-C(OTG)*1 | |||
RS232(optional) | Optional RS232 serial port, using 5pin micro one GPIO port | |||
Direction Sensor | Support | |||
Gravity sensor | Support | |||
Magnetic Field Sensor | Support | |||
Motion sensor | Support | |||
Rotation Vector | Support | |||
Light-sensor | Support | |||
Acceleration sensor | Support | |||
Charger | 5.0V 2A-10W | |||
Temperature pressure sensor | Optional | |||
Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
Appearance | ||||
Size | 320*228*12mm(L×W×H) | |||
Weight | 975g | |||
Color & Material | Black(ABS+PC+TPU) |
Communications & Networking | ||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||
2G Band | GSM(B2/3/5/8) | |||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||
3G Band | WCDMA(B1/2/5/8),Evdo: BC0/BC1 CDMA: BC0/BC1 | |||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink | |||
4G Band | TD-LTE(B38/39/40/41);FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) | |||
WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||
Bt | 4.2 Low Energy (LE) |
Industrial & Reliability Design | ||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||
Waterproof | Class 5 ( IEC 60529 ) | |||
Dustproof | Class 6 ( IEC 60529 ) | |||
Reliability | MTBF>5000h;MTTR | |||
Operating | -20°C to 55°C | |||
Storage Temperature | -40°C to 70°C | |||
RH | 5% to 95% | |||
Operating Altitude | Max: 4,500 m(15,000 feet) |
Certification/OS/Software | ||||
Certification | 3C /FCC/CE/ROHS/IP65(IEC 60529) | |||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional,etc | |||
OS | Android 10.0 |
